Go's Channels and acci-ping

Terminal Applications are an interesting problem. Just like tradition graphical applications the natural paradigm will lead to some sort of “main thread” being responsible for updating the display. acci-ping is no different - it is bound by the thread which writes to standard out.

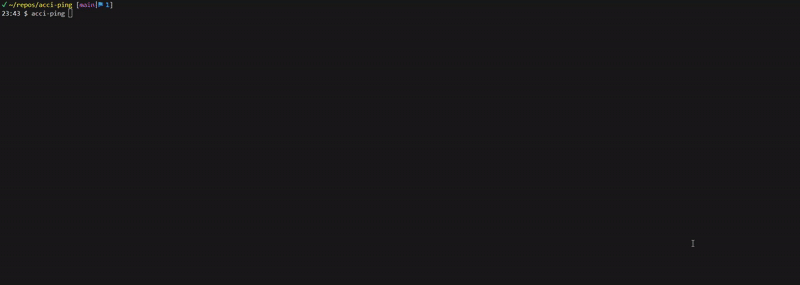

In case you don’t already know, acci-ping is a simple graphing terminal application for network latency:

Now back to concurrency, because acci-ping inherently is based on something which may fail and then lock up the main thread - getting latency information from the network - this forces some more thought to go into the design of it in order to have an application that’s actually responsive. In my opinion, at least one more thread is in order!

This leads very naturally to goroutines and my first iteration of acci-ping:

1. A goroutine to talk to the network
2. A goroutine to update the terminal

But this immediately brings up the next problem: How do these goroutine (threads) share information?

Before working in Go I may have leaned on something quite low level, a shared memory structure with a read-write-mutex. However, this is not the primitive which is recommended, instead Go provides channels. Which if you’re not already familiar with, are a runtime provided mechanism to send and receive values of any Go type across concurrent functions. It comes with a special operator <- which can be used in a few ways. Here’s a quick example¹:

func main() {
	shared := make(chan int)
	// a writing goroutine
	go func() {
		for i := range 100 {
			shared <- i
		}
	}()
	// a reading goroutine
	go func() {
		for {
			i, ok := <- shared
			if !ok {
				return
			}
			fmt.Println(i)
		}
	}()
	time.Sleep(10)
}

This small example shows how two goroutines can safely share int across the channel. shared := make(chan int) is the line which actually creates the channel, and the line shared <- i which writes to the channel is read by the line i, ok := <- shared. This is actually a queue as specified by the Go spec:

Channels act as first-in-first-out queues. For example, if one goroutine sends values on a channel and a second goroutine receives them, the values are received in the order sent.

Therefore, the output of this simple example should be the numbers in order: 0 to 99

How are channels used in

acci-ping

?

As alluded too in the introduction, acci-ping has two main goroutines, one is listening on the network for ping replies in order to determine new latency data points. Then a second goroutine receives these data points and plots them to the screen. I consider this a single “source” and “sink”² model, but unfortunately this simple model doesn’t quite fit - one of the other key features of acci-ping is that it records the latency to a file simultaneously. This means that acci-ping actually has one source and two sinks…

Go’s channels do not actually provide a built-in way to do this - if you naively set-up one channel and have more than one reader taking values from it, you will see that the data is not replicated, i.e.

func main() {
	shared := make(chan int)
	// a writing goroutine
	go func() {
		for i := range 100 {
			shared <- i
		}
	}()
	// a reading goroutine
	go func() {
		for {
			i, ok := <- shared
			if !ok {
				return
			}
			fmt.Printf("First: %d\n", i)
		}
	}()
	// a second reading goroutine
	go func() {
		for {
			i, ok := <- shared
			if !ok {
				return
			}
			fmt.Printf("Second: %d\n", i)
		}
	}()
	time.Sleep(10)
}

What would the output of this program be?

The actual printed int’s will be exactly 0 to 99, however, it is up to the whims of the scheduler whether more of those lines contain "First: " or "Second: ". In general, it is deliberately unspecified by the Go runtime what ordering this program will produce.

Since acci-ping requires that the data is replicated, if acci-ping worked like this small demo program, it would output sporadically onto the terminal graph, and the file it creates would have a completely different set of points (the ones not shown!). Hence, it creates a mechanism built on top of channels in order to facilitate solving this issue:

// TeeBufferedChannel, duplicates the channel such that both returned channels receive values from [c], this
// duplication is unsynchronised. Both channels are closed when the [ctx] is done.
func TeeBufferedChannel[T any](ctx context.Context, c <-chan T, channelSize int) (
	chan T,
	chan T,
) {
	left := make(chan T, channelSize)
	right := make(chan T, channelSize)
	go func() {
		defer close(left)
		defer close(right)
		for {
			select {
			case <-ctx.Done():
			case v := <-c:
				go func() {
					left <- v
				}()
				go func() {
					right <- v
				}()
			}
		}
	}()
	return left, right
}

This function TeeBufferedChannel can essentially duplicate any channel, copying the values received from the input channel to two output channels. The name is inspired by the unix program tee³. Here you may also see some other Go concurrency primitives that get heavily leveraged in acci-ping:

The way TeeBufferedChannel is very simple, given the input channel c:

• make two more channels to return to the callee as the result (named left and right)

  left := make(chan T, channelSize)
  right := make(chan T, channelSize)


• spawn a new goroutine
  • inside this routine we loop forever, or until cancelled, reading from the input channel c. Whenever we get a value from c:

    for {
    	select {
    	case <-ctx.Done():
    	case v := <-c:
    		/* next bullet */
    	}
    }


  • We spawn a two new goroutines which have the single responsibility to write to left or right channel.

    go func() {
    	left <- v
    }()
    go func() {
    	right <- v
    }()


• finally, return left and right

This may seem like a lot of extra goroutines - which you would not be wrong about - however, as each one is relatively cheap, it’s a small price to pay to ensure that rate of consuming and production is not coupled.

If you’re familiar with this pattern then you may also recognize that this is generalizable to N output channels, it’s not limited to just two. In fact, this is also used by acci-ping which uses channels for handling errors⁴.

Therefore, we can now see how acci-ping handles the flow of data. At a high-level it’s simply one source and two sinks:

// config is just a bunch of now parsed flags from the command line
func RunAcciPing(c Config) {
	ctx, cancelFunc := context.WithCancelCause(context.Background())
	defer cancelFunc(nil)
	// creates the source:
	channel := ping.CreateChannel(ctx, existingData.URL, c.pingsPerMinute, c.pingBufferingLimit)
	// duplicate the source
	graphChannel, fileChannel := TeeBufferedChannel(ctx, channel, c.pingBufferingLimit)
	// create the file sink:
	go app.writeToFile(ctx, fileData, fileChannel)

	// create the graph (does the drawing) sink:
	term := terminal.NewTerminal()
	graph := graph.NewGraph(graphChannel, term)

	// now run the program!
	err := app.Run(graph)
	if err != nil && !errors.Is(err, terminal.UserCancelled) {
		exit.OnError(err)
	} else {
		app.Finish()
	}
}

More channel usages!

It’s not just the primary data source which needs to be handled concurrently, but also interactions with the terminal. Since acci-ping puts the terminal into “raw mode⁵” it needs to handle the ctrl-c and sigkill signals itself. Furthermore, as acci-ping will already have a goroutine writing the graph, this means it needs another concurrent operation, so you guessed it! A channel is in order.

Here is the overview for how the terminal is interacted with:

term, _ := terminal.NewTerminal()
cleanup, _ := term.StartRaw(ctx, stop)
defer cleanup() // Graceful panic recovery unsetting raw mode
<-ctx.Done() // Wait till user cancels with ctrl+C

As you can see, we have a channel waiting on the context being done and no obvious goroutine being spawned. This is another nice feature of Go’s APIs that to all packages it appears synchronous, even if there is actually some concurrency hidden behind APIs. In this case, the StartRaw function is hiding something:

func (t *Terminal) StartRaw(ctx context.Context, stop context.CancelFunc) error {
	oldState, _ := term.MakeRaw(inFd)
	if err != nil {
		return errors.Wrap(err, "failed to set terminal to raw mode")
	}
	closer := func() { _ = term.Restore(inFd, oldState) }
	// control-c listener added here ...
	go t.beingListening(ctx)
	return nil
}

Hey look a goroutine! go t.beingListening(ctx), lets see what this function does:

func (t *Terminal) beingListening(ctx context.Context) {
	buffer := make([]byte, 10)
	var err error
	var n int
	inputChannel := make(chan struct{})
	// Create a goroutine which continuously reads from stdin
	go func() {
		defer close(inputChannel)
		for {
			select {
			case <-ctx.Done():
				return
			default:
				// This is blocking hence why the goroutine wrapper exists, we still only free ourself when
				// the outer context is done which is racey.
				n, err = os.Stdin.Read(buffer)
				inputChannel <- struct{}{}
			}
		}
	}()

	for {
		// Spin forever, waiting on input from the context which has cancelled us from else where, or a new
		// input char.
		select {
		case <-ctx.Done():
			return
		case <-inputChannel:
			if err != nil {
				panic(errors.Wrap(err, "unexpected read failure in terminal"))
			}
			// handle listeners here, including ctrl-c
		}
	}
}

Oh wow! It seems that it’s goroutines all the way down.

One of the other blessings that goroutines enable is that you can make any API asynchronous by also wrapping them in goroutine. However, this leads to one of the curses of Go, which is that contextless functions do not really become “asynchronous” just by wrapping them in a goroutine.

Wrapping

Read

in a goroutine doesn't make it async

Just because you can wrap any io.Reader in a goroutine, it doesn’t actually give you all the concurrent properties you might actually want. This is because one more level of abstraction is required, as you saw in the beingListening function there’s another key part of this workaround which is that another channel is needed. This is because a switch statement can only be used on channels.

In some other, more magical world, I do think this syntax would’ve been an interesting way to make APIs asynchronous more easily e.g. here’s acci-ping’s function for reading from the network:

func (p *Ping) pingRead(ctx context.Context, buffer []byte) (int, error) {
	type read struct {
		n   int
		err error
	}
	c := make(chan read)
	go func() {
		n, _, err := p.connect.ReadFrom(buffer)
		c <- read{n: n, err: err}
	}()
	select {
	case <-ctx.Done():
		err := context.Cause(ctx)
		return 0, err
	case success := <-c:
		return success.n, success.err
	}
}

In my magic syntax this function simplifies directly too:

func (p *Ping) pingRead(ctx context.Context, buffer []byte) (int, error) {
	select {
	case <-ctx.Done():
		err := context.Cause(ctx)
		return 0, err
	case n, err := <-go p.connect.ReadFrom(buffer):
		return n, err
	}
}

Here the magic syntax just expands this inline goroutine to make a channel above the select of the return type of the function. Unfortunately, we don’t live in this world (alas!), so this extra boiler plate is always required if you need cancellable, but blocking functions.

Also this can leak a goroutine, I recommend the excellent blog post: Cancelable Reads in Go by Ben Congdon. In fact, acci-ping suffers from this quite acutely when network conditions are poor, as the “asynchronous” reads timeout and leaks the goroutine.

Conclusion

Because of Go’s powerful concurrency primitives it actually means that acci-ping spends most of its time waiting on network events 🎉 Drawing the graph is optimised well enough (I might cover that optimisation process in another post!), that acci-ping can be run with GOMAXPROCS=1 essentially disabling the Go runtime from spawning new threads, instead it will interleave the goroutines to work on that single thread.

Another spot that also maps really well to channels and goroutines is the UI, which the toast notifications and help box are implemented with. It’s fair to say that I think the model is really intuitive, and I really appreciate the design and thought that went into Go’s concurrency model.
